Modification Skep Piston / Piston Valve Carburetor GL100 for Jupiter

Posted by

Skep GL100 has a diameter of 19.9mm and a greater skepticism than RC100 (diameter 19mm). If the reamer using RC100 skepticism has failed and leaked, then we can use the larger GL100 skepticism. It's just necessary to do some modifications. The part that will be modified is a cutaway skepticism.

The steps:

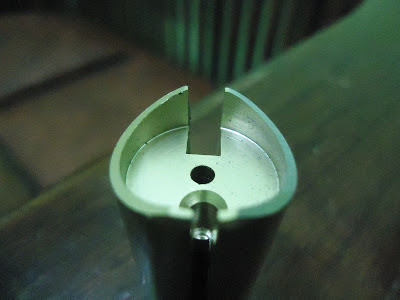

1 Create a new cutaway.

Cutaway positioned on the other side of skepticism. How to make easy, simply by sharpening stone knife, sandpaper, and a bit of strength we are able to create your own. Measure the desired height cutaway (try the same with his original). Miser slowly over the sharpening stone. After wrapping, puree back with fine sandpaper for finishing it. The lower part is made of 5mm.

2 Patching the original cutaway.

In order idling original cutaway compulsory closed or patched. Skep mine patched using glue iron. These patches should be very strong, and its average either side of her bottom, and smooth.

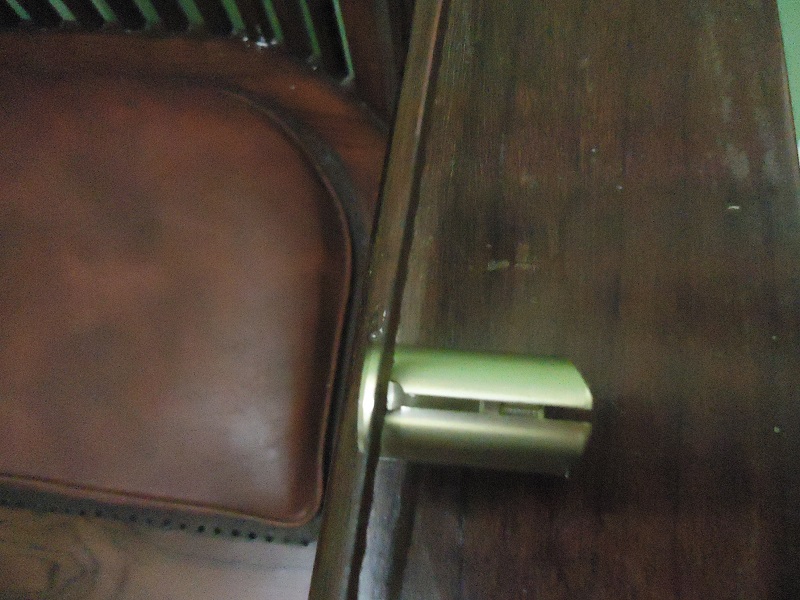

3 Cutting height skepticism.

In order for the maximum aperture skepticism, skepticism height can be cut using a hacksaw.
